Details description

CFF4C1950R70FA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

1950

MHz

Bandwidth [BW]

fo ±35 [1915~1985]

MHz

Insertion Loss in BW

3

dB max

Ripple in BW

0.5

dB max

Return Loss in BW

18.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

35dB min @ fo ± [ 1915~1985  ]

MHz

dB min @ fo ± [  ~  ]

MHz

dB min @ fo ± [  ~  ]

MHz

dB min @ fo ± [  ~  ]

MHz

Group Delay Variation



ns max

Input Power

2

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

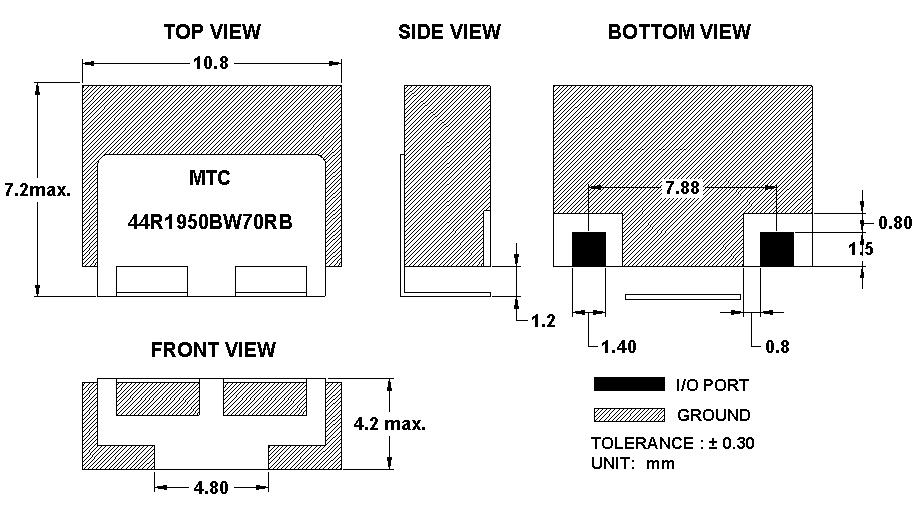

机械规格图

绘图数据

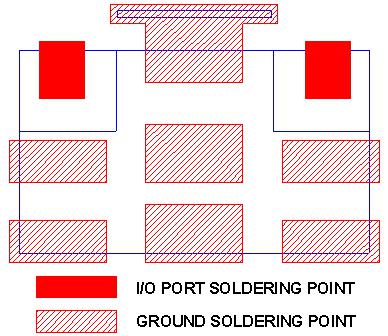

推荐的PC板模式

焊接条件
