CFK8P942N24FA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
942.0 |
MHz |
|
Bandwidth [BW] |
fo±12.0 [930.0 ~954.0 ] |
MHz |
|
Insertion Loss in BW |
8.0 |
dB max |
|
Ripple in BW |
3.0 |
dB max |
|
Return Loss in BW |
10.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
3.0 dBc min. @ fo ± 13.0 [929.0 & 955.0 ] |
MHz |
|
20.0 dBc min. @ fo ± 17.0[925.0 &959.0 ] |
MHz |
|
|
60.0 dBc min. @ fo ± [885.0 ~ 909.0 ] |
MHz |
|
|
dB min @ fo ± [ ~ ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
2.0 |
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

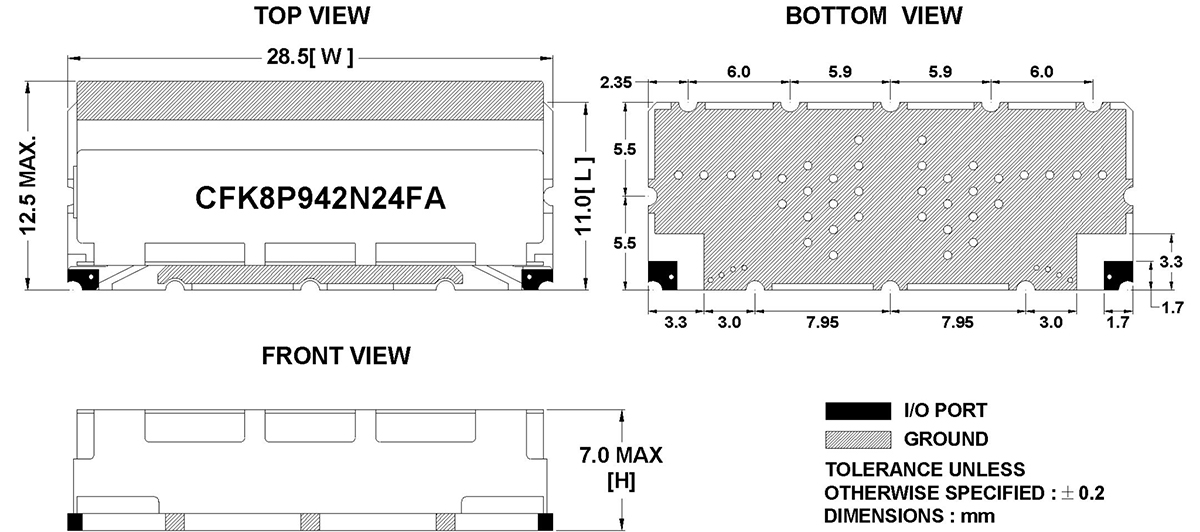

机械规格图
