CFK8P900N30FA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
900 |
MHz |
|
Bandwidth [BW] |
fo±15 [ 885 ~915 ] |
MHz |
|
Insertion Loss in BW |
4.0 |
dB max |
|
Ripple in BW |
2.0 |
dB max |
|
Return Loss in BW |
15.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
20 dB min. @ 992.5 |
MHz |
|
50 dB min. @[ 930~960 ] |
MHz |
|
|
dB min @ fo ± [ & ] |
MHz |
|
|
dB min @ fo ± [ ~ ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
|
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

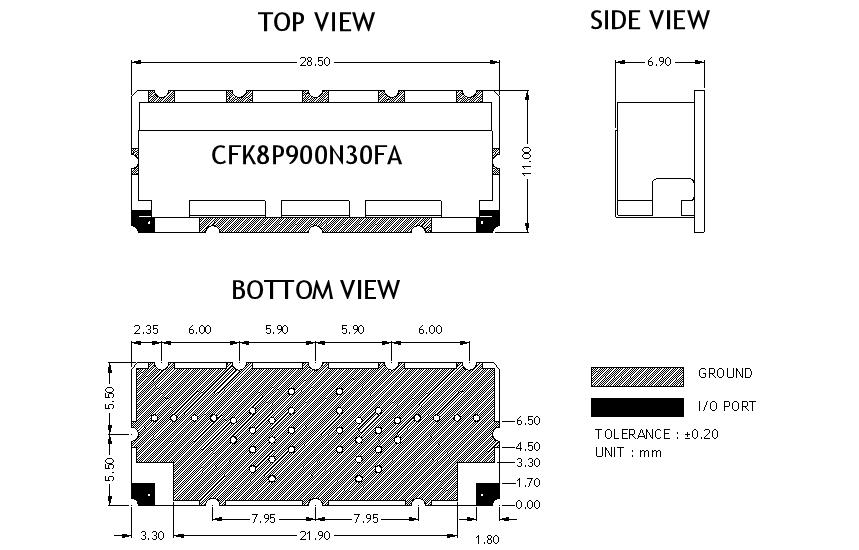

机械规格图

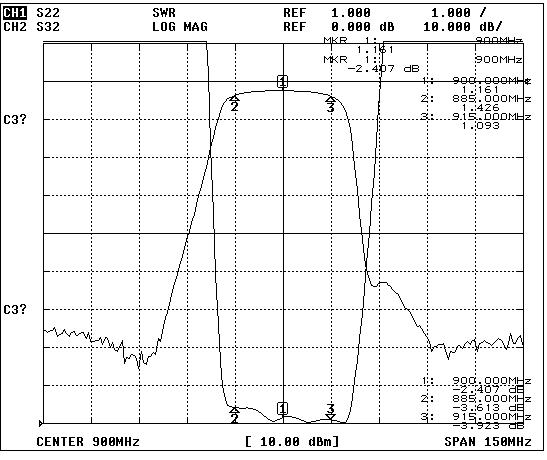

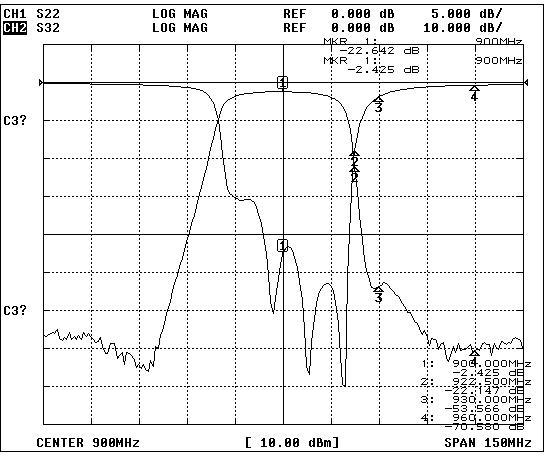

绘图数据
推荐的PC板模式
焊接条件
