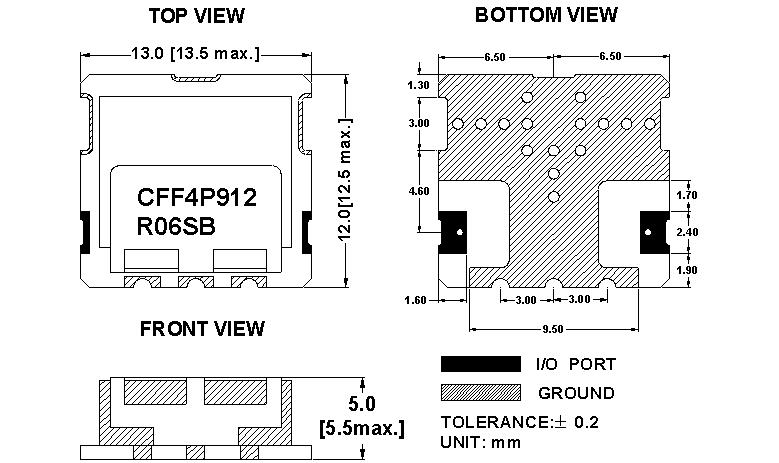

CFF4P912R06SB

ITEMS

SPEC

UNIT

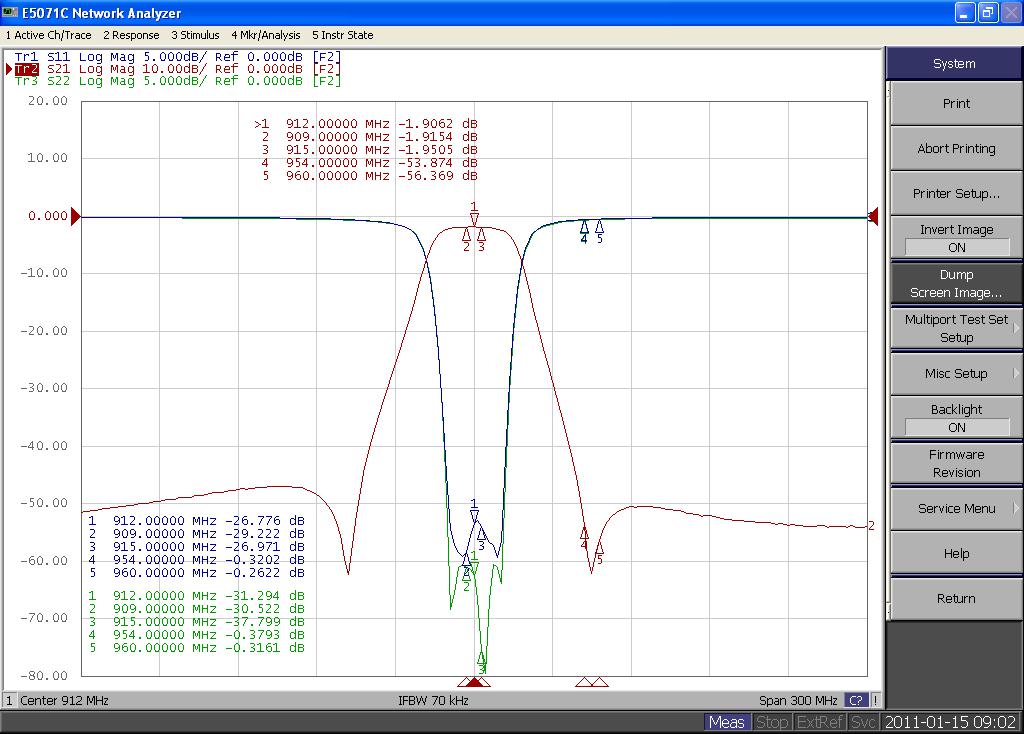

Center Frequency [fo]

912.0

MHz

Bandwidth [BW]

fo±3.0 [ 909.0 ~915.0 ]

MHz

Insertion Loss in BW

3.0

dB max

Ripple in BW

0.5

dB max

Return Loss in BW

17.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

45 dB min.  @ fo ±    [954.0 ~960.0 ]

MHz

  dB min @ fo ±    [    &   ]

MHz

  dB min @ fo ±    [    &   ]

MHz

dB min @ fo ±   [     ~   ]

MHz

Group Delay Variation

ns max

Input Power

2.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃
