Details description

CFN8P912N06FA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

912

MHz

Bandwidth [BW]

fo ±6 [909~915]

MHz

Insertion Loss in BW

2.8

dB max

Ripple in BW

0.5dB

dB max

Return Loss in BW

14.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

50.0 dB min @ 954~960

MHz

30.0 dB min @ 892~932

MHz

dB min @ fo ± [  ~  ]

MHz

dB min @ fo ± [  ~  ]

MHz

Group Delay Variation



ns max

Input Power

2

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

机械规格图

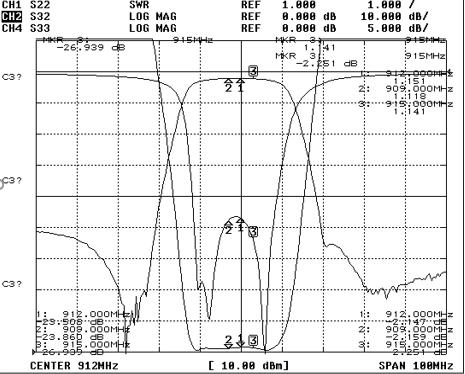

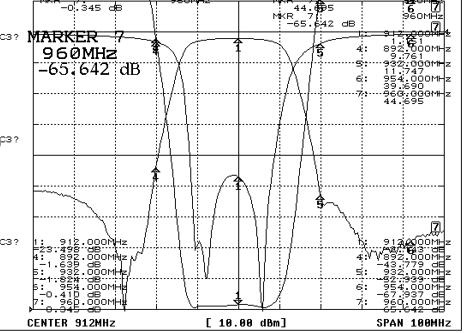

绘图数据



推荐的PC板模式

焊接条件
