Details description

CFN8P897N24FA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

897.0

MHz

Bandwidth [BW]

fo ±12 [885~909]

MHz

Insertion Loss in BW

4

dB max

Ripple in BW

2.0dB

dB max

Return Loss in BW

18

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

30.0 dB min @ 919.5

MHz

50.0 dB min @ 930~960

MHz

dB min @ fo ± [  ~  ]

MHz

dB min @ fo ± [  ~  ]

MHz

Group Delay Variation



ns max

Input Power

3

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

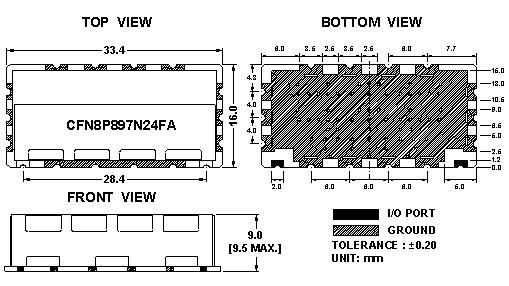

机械规格图

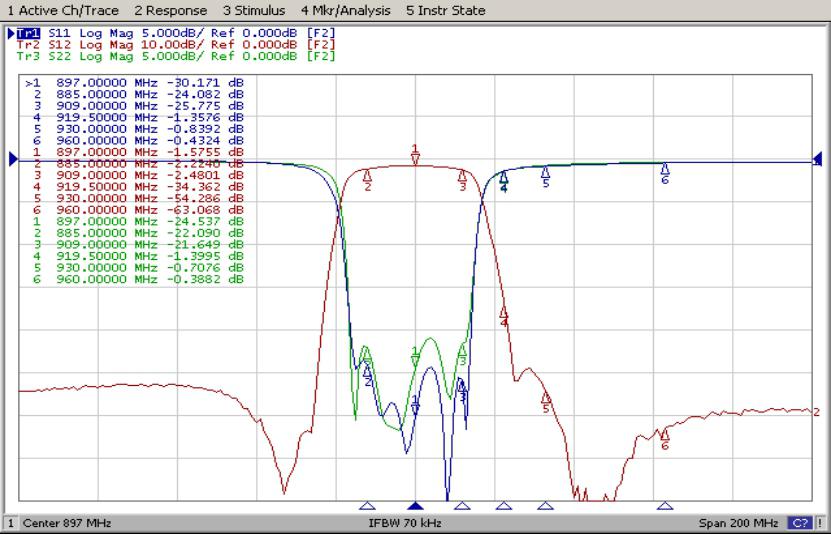

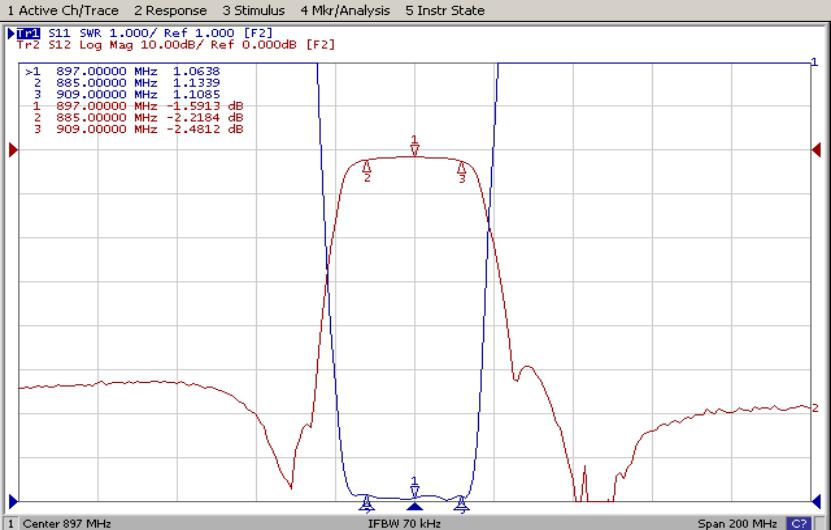

绘图数据

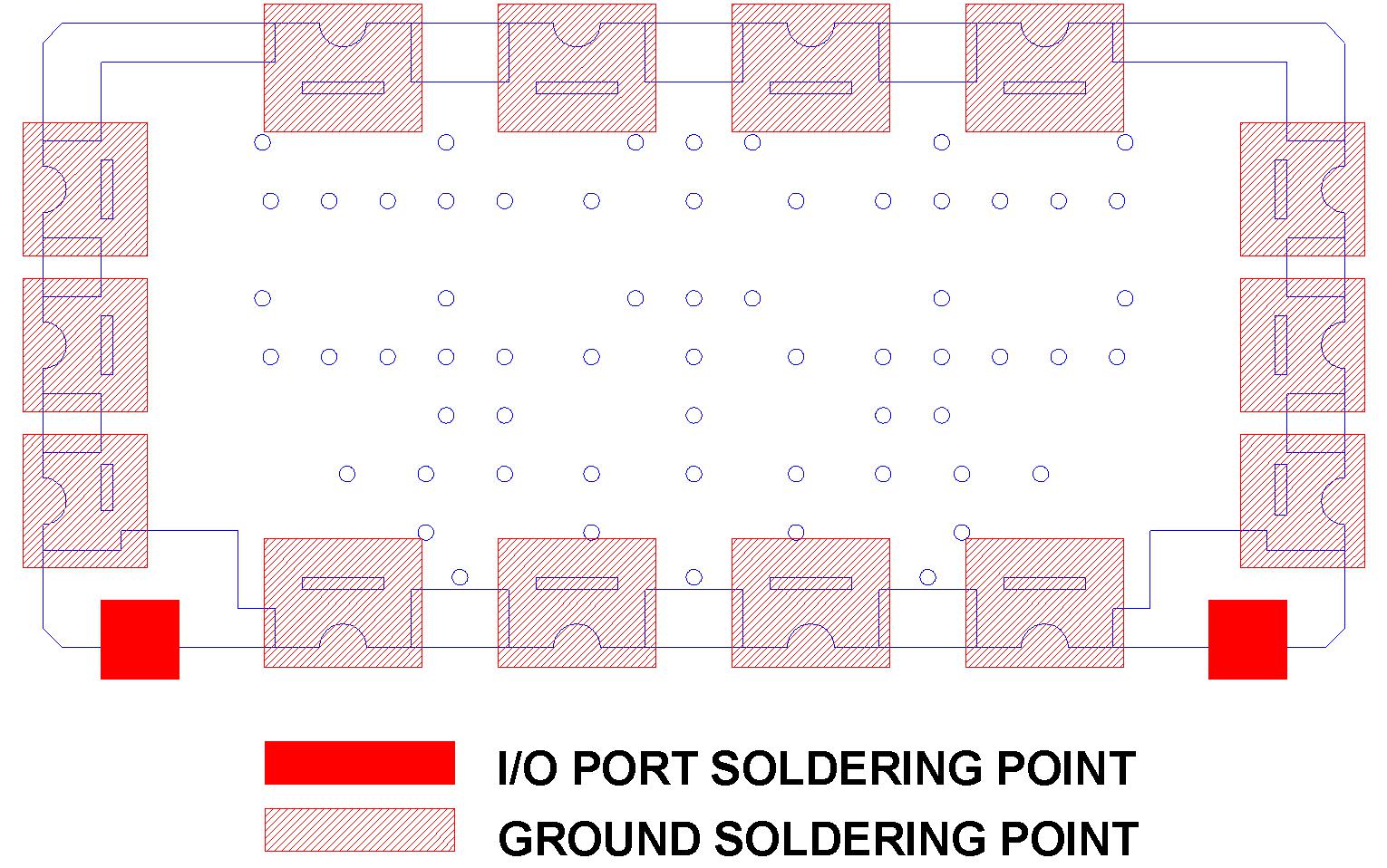

推荐的PC板模式

焊接条件
